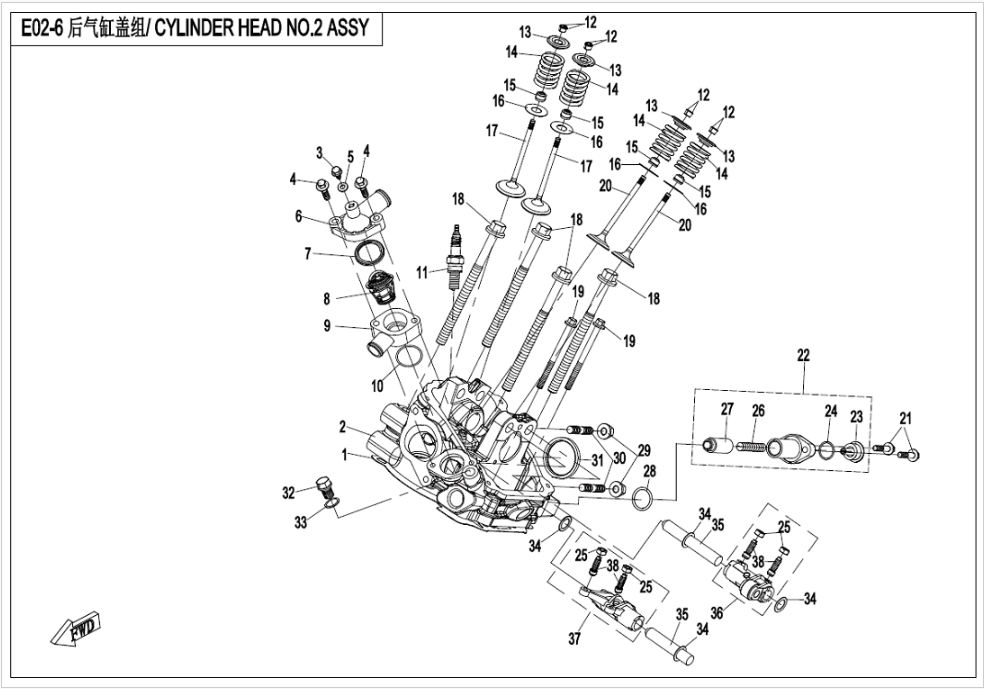

ENGINE 2016 2V91W(Z8) - E02-6 CYLINDER HEAD NO.2 ASSY

Products Mode: 2V91W(Z8) - E02-6
Attributes
Place of Origin: China
Port: Ningbo/Shanghai
Payment: T/T
Shipping: Air/Sea
PS: This product is sold without an agent of the region


No.P/NParts NameQtyIn stock
010800-022200GASKET, CYLINDER HEAD1Yes
020800-026100REAR CYLINDER HEAD ASSY1Yes
0330132-480130030SELF-TAPPING SCREW ST4.8x131Yes
040180-013208-0010BOLT M6x452Yes
050800-022011WASHER 5.3x11x1.51Yes
060800-022013HOUSING, THERMOSTAT1Yes
070010-022802SEAL RING1Yes
080800-022700THERMOSTAT1Yes
090800-022012SEAT, THERMOSTAT1Yes
1030502-028000NO-RING1Yes
110800-022800SPARK PLUG1Yes
120800-022016LOCK CLIP, VALVE8Yes
130800-022007UPPER SEAT, VALVE SPRING4Yes
140800-022006SPRING, VALVE4Yes
150010-022500-1000SEAL RING, VALVE STEM4Yes
160800-022008LOWER SEAT, VALVE SPRING4Yes
170800-022004VALVE, INTAKE2Yes
180800-022003-0001BOLT, CYLINDER4Yes
190800-022009-0001BOLT M6x802Yes
200800-022005VALVE, EXHAUST2No
210010-021017-0010BOLT M6x252No
220800-022400TENSIONER1Yes
230800-022402SCREW PLUG, TENSIONER1Yes
240800-022407O-SEAL RING 17x1.451Yes
250800-022506ADJUST NUT, VALVE CLEARANCE4Yes
260800-022405SPRING, CHAIN TENSIONER1Yes
270800-022410PLUNGER, CHAIN TENSIONER1Yes
280800-022017SEAL RING, TENSIONER1Yes
290010-011700-0010FLANGE NUT M82Yes
300180-022003-0010STUD M8x422Yes
310800-022300BUSHING, EXHAUST PIPE1Yes
320800-022015SCREW PLUG M12x1.51Yes
330800-022014WASHER 12.2x18x1.51Yes
340800-022002WASHER 12.3x18.5x0.54Yes
350800-022001ROCKER ARM SHAFT2Yes
360800-022600-1000SWING ARM, EXHAUST1Yes
370800-022500-1000SWING ARM, INTAKE1Yes
380800-022510ADJUST SCREW, VALVE CLEARANCE4Yes
