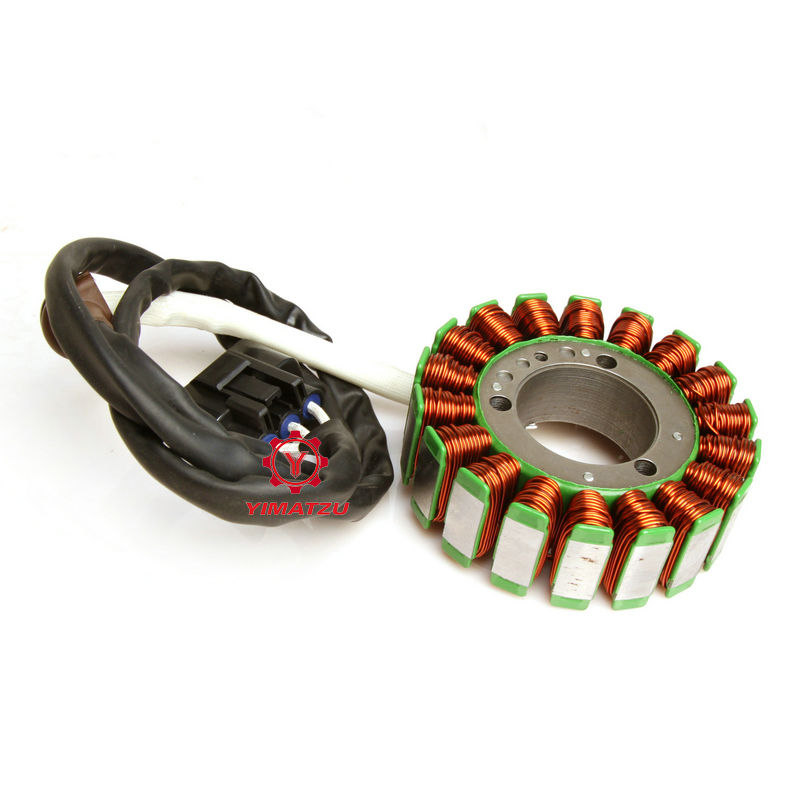

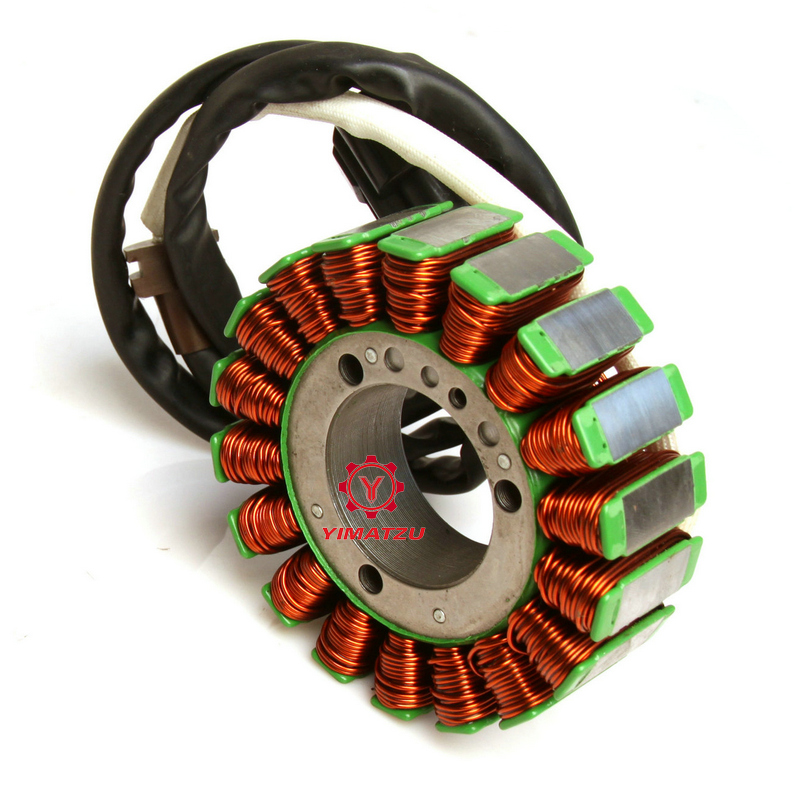

Stator / Magneto coil, 18G, 5 Wire. Commonly used for (but not limited to) 400cc, 500cc, 700cc and 800cc engines, such as the Hisun 400cc, Hisun 500cc, Hisun 700cc and Hisun 800cc UTVs as well as many other clones, rebrands and similar displacement machines.
Common Hisun model names are primarily listed as variations of "Hisun 400cc UTV", "Hisun HS400UTV", "HSUN HS400 E-mark EFI", "Hisun 500cc UTV", "Hisun HS500UTV", "HSUN HS500 E-mark EFI", "Hisun 700cc UTV", "Hisun HS700UTV", "HSUN HS700 E-mark EFI", "Hisun 800cc UTV", "Hisun HS800UTV" and "HSUN HS800 E-mark EFI". Common listed Hisun stator / magneto coil previous part number is 31100-F12-0000 and current part number is 31120-003-0000, listed as "Magnetic Motor Stator Assy" in their parts lists. Also applies to some variations of Hisun ATV models.
Common Nordik model names are primarily listed as "Nordik NK 500 U", "Nordik NK 700 U" and "Nordik NK 800 U". Common listed Nordik NK500U, NK700U and NK800U stator / magneto coil previous part number is 31100-F12-0000 and current part number is 31120-003-0000, listed as "Magnetic Motor Stator Assy" in their parts lists. Also applies to some variations of Nordik ATV models.
Common Powermax model names are primarily listed as "Powermax Roughrider 500 UTV", "Powermax Roughrider 700 UTV" and "Powermax Roughrider 800 UTV". Common listed Powermax stator / magneto coil previous part number is 31100-F12-0000 and current part number is 31120-003-0000, listed as "Magnetic Motor Stator Assy" in their parts lists. Also applies to some variations of Powermax ATV models.
Approximate dimensions:
Outside Diameter: 104mm
Centre Hole Diameter: 42.1mm
Mounting Hole (centre-centre): 42.8mm
Bolt Hole: 6.4mm
Harness Length: 101cm
Manufacturer Part Numbers:
31120-010-0000
